Description

SCOPE OF APPLICATION:

① Suitable for residential buildings, hotels, stores, office,etc.
② Suitable for single or multiple wooden sliding doors.

FUNCTIONAL CHARACTERISTICS:

① The upper load-bearing design avoids drilling and slotting on the ground

② High load-bearing, quiet and wear-resistant roller material

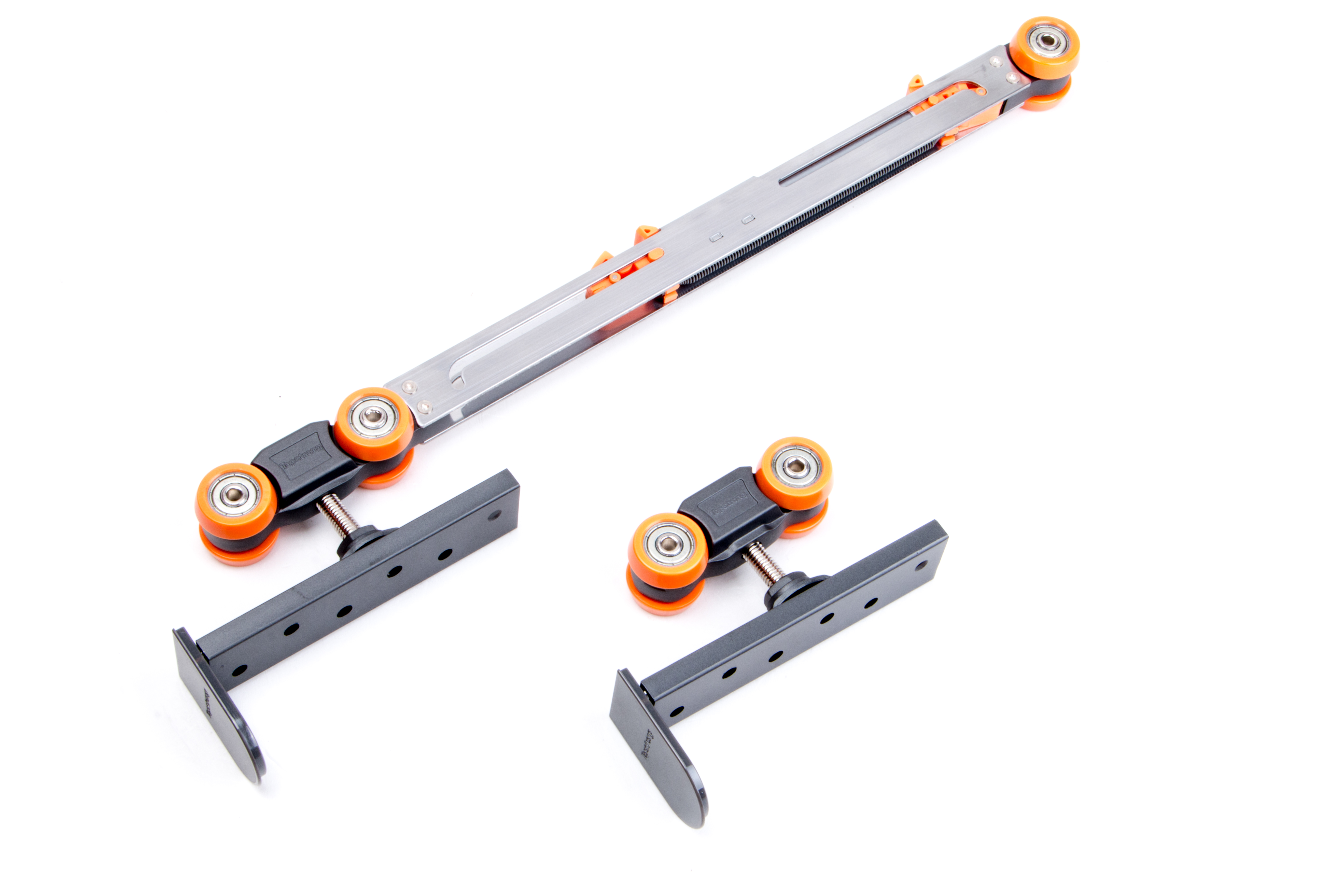

③ Bevel round shaped wheels with high-precision bearings for sliding doors

④ Long buffer distance, mute, safe, and to prevent the pinch

⑤ Single cylinder bilateral buffer, wide range of installation door

PARAMETER:

Load-bearing range: ≤ 100kg
Applicable door thickness:≥40mm
Applicable Applicable door width:≥550mm
Height adjustment: 0-10mm
Service life: 100000 times

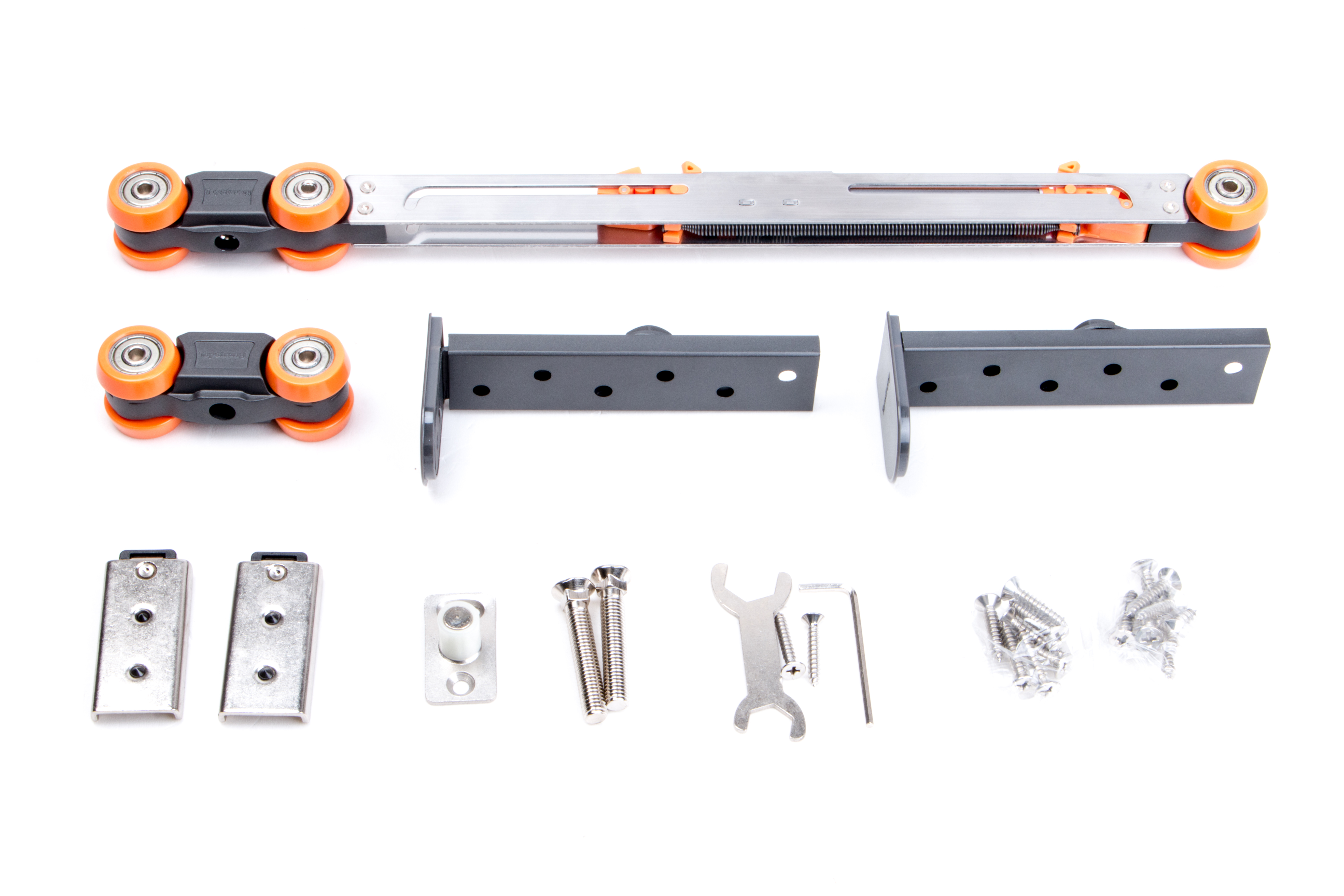

MAIN MATERIALS:

Main material of hanging wheel:zinc alloy
Wheel material:New synthetic resin materials
Rack:high quality Steel
Hanging rail:Aluminium alloy

CALCULATION:

Door opening height  H
Hanger rail height    H1
Door leaf height     L
Door leaf Width     W

Door leaf overlap width   C
Upper door slot size   H2
Lower door slot size   H3

Door leaf height：L=H-H1-H2-H3
Effective opening width of door：X=W-C

Door leaf overlap width：C=20~100mm
Hanger rail height：H1=42.5mm
Upper door slot size：H2=5~15mm
Lower door slot size：H3=5~8mm
