Description
SCOPE OF APPLICATION:

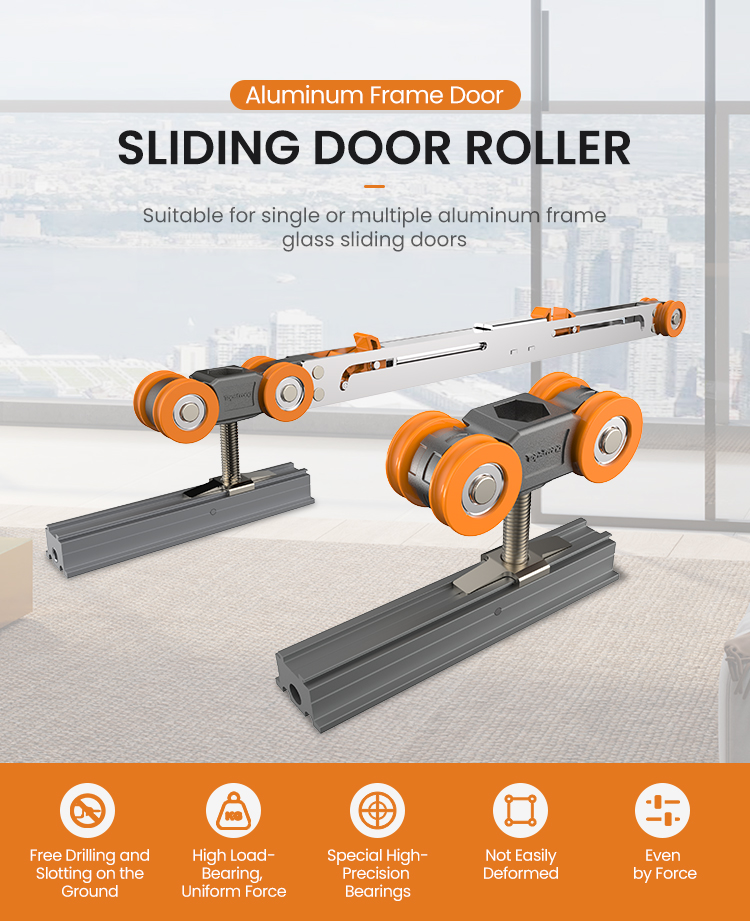

① Suitable for residential buildings, hotels, stores, office,etc.
② Suitable for single or multiple wooden sliding doors.
FUNCTIONAL CHARACTERISTICS:
① The upper load-bearing design avoids drilling and slotting on the ground

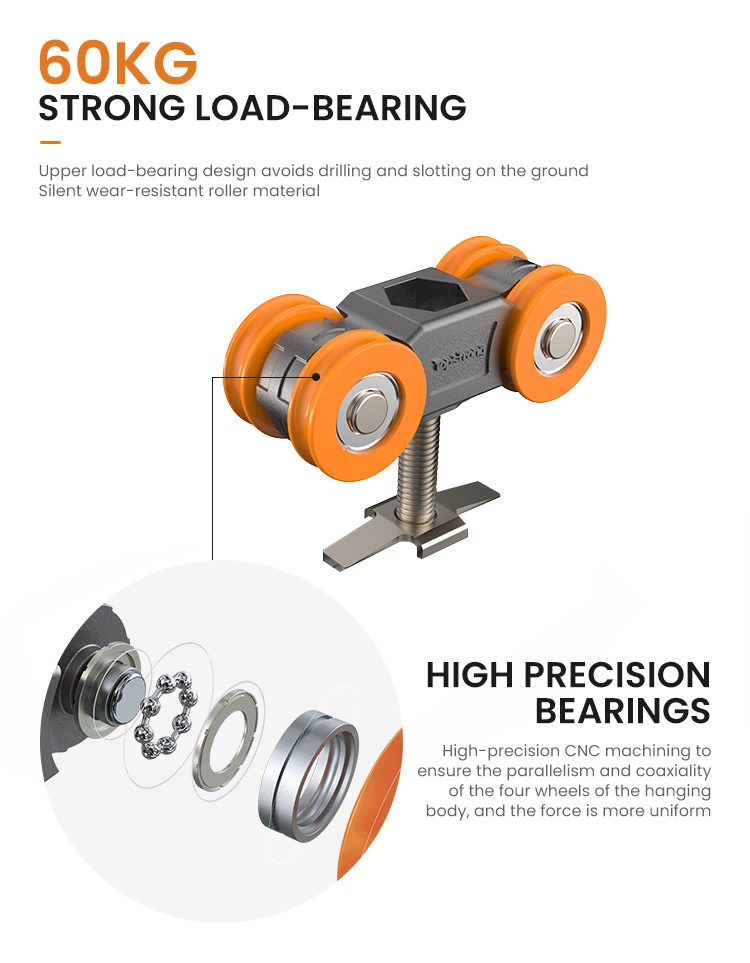

② High load-bearing, quiet and wear-resistant roller material
③ U-shaped train wheels with high-precision bearings for sliding doors
④Long buffer distance, mute, safe, and to prevent the pinch
⑤Single cylinder bilateral buffer, wide range of installation door

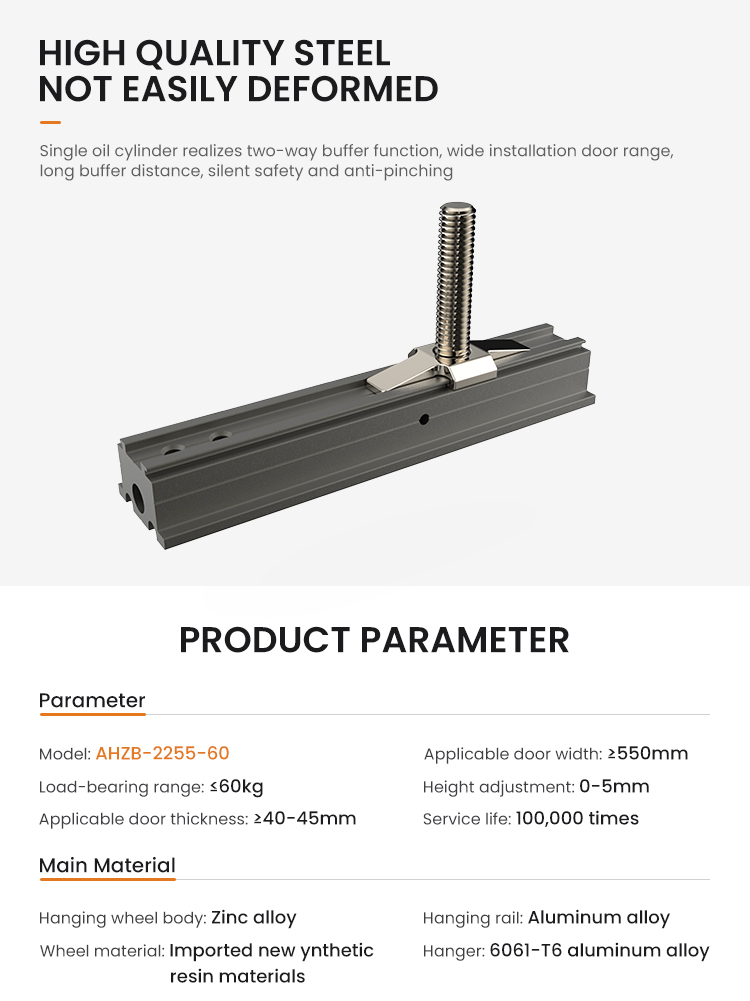

PARAMETER:
Load-bearing range: ≤ 60kg
Applicable door thickness: 45mm
Applicable Applicable door width: ≥550mm
Height adjustment: 0-10mm
Service life: 100000 times
MAIN MATERIALS:
Main material of hanging wheel:zinc alloy
Wheel material:New synthetic resin materials
Rack:6061-T6 Aluminium alloy
Hanging rail:Aluminium alloy

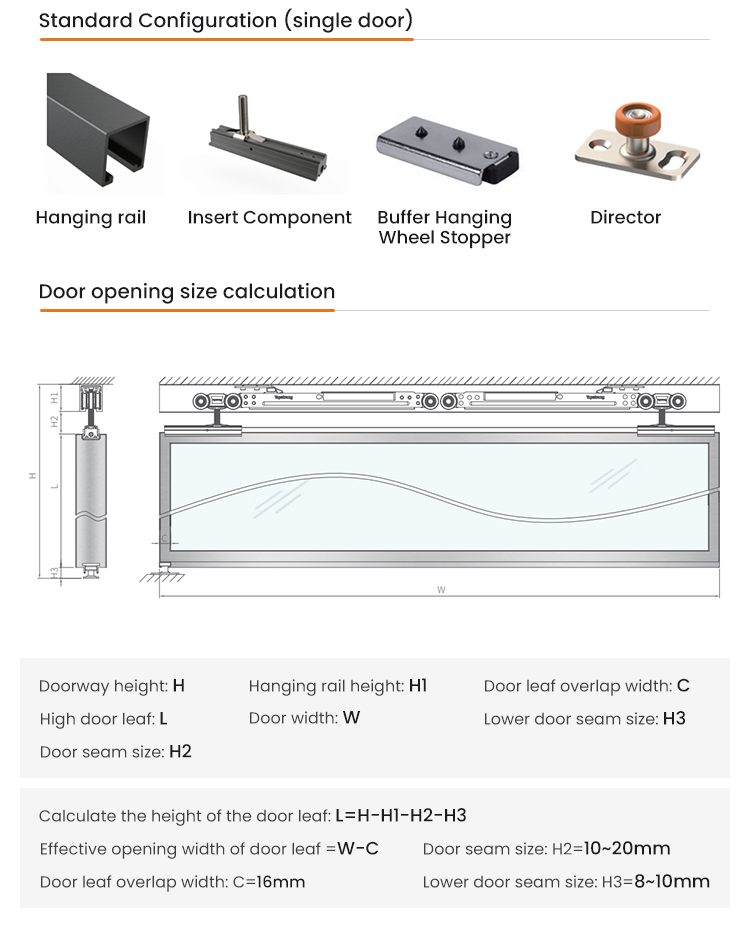

CALCULATION:
Door opening height H
Hanger rail height H1
Door leaf height L
Door leaf Width W
Door leaf overlap width C
Upper door slot size H2
Door leaf height：L=H-H1-H2-H3
Effective opening width of door =W-C
Door leaf overlap width：C=16mm
Hanger height: H1=38.5mm
Upper door slot size：H2=10~20mm
Lower door slot size：H3=8~10mm
