Description

SCOPE OF APPLICATION:

① Suitable for residential buildings, hotels, stores, office,etc.
② Suitable for single or multiple wooden sliding doors.

FUNCTIONAL CHARACTERISTICS:

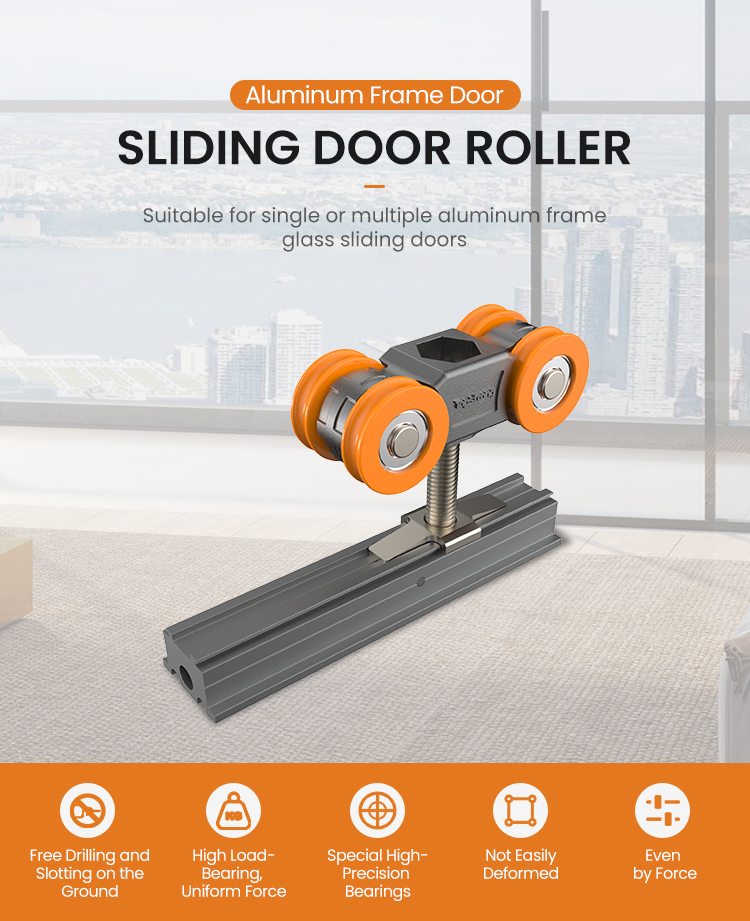

① The upper load-bearing design avoids drilling and slotting on the ground
② High load-bearing, quiet and wear-resistant roller material

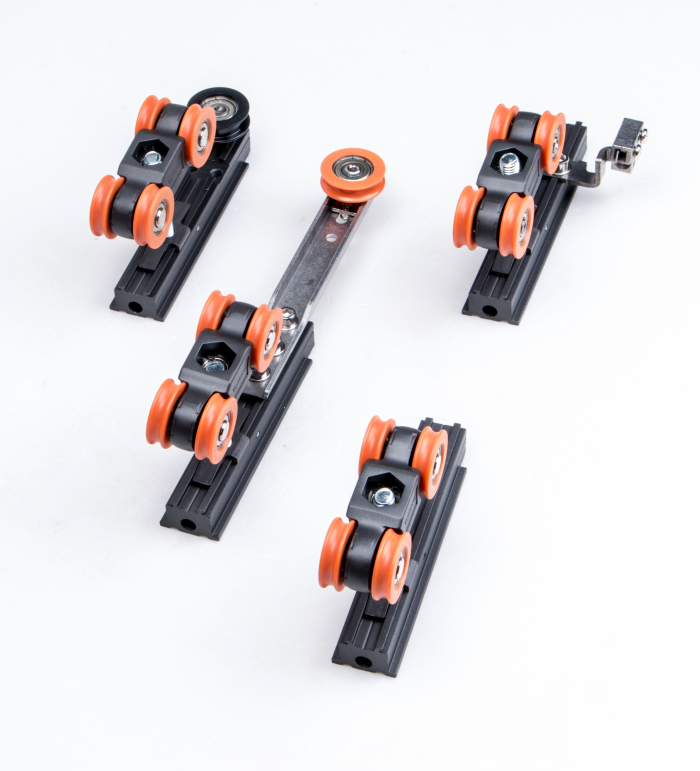

③ U-shaped train wheels with high-precision bearings for sliding doors
④ Hanging subassembly is formed by high-quality alumininum alloy, which is not easy to deform due to large bearing capacity
⑤ High-precision CNC machining ensures the parallelism and coaxiality of the four wheels of the hanging body, and the force is more uniform

PARAMETER:

Load-bearing range:   ≤ 60kg
Applicable door thickness:≥ 45mm
Applicable Applicable door width:≥ 400mm
Height adjustment:0-10mm
Service life:100000 times

MAIN MATERIALS:

Main material of hanging wheel:zinc alloy
Wheel material:New synthetic resin materials
Rack:6061-T6 Aluminium alloy
Hanging rail:Aluminium alloy

CALCULATION:

Door leaf height：L=H-H1-H2-H3
Effective opening width of door ：X=W-C
Door leaf overlap width：C=16mm

Hanger height: H1=38.5mm

Upper door slot size：H2=10~20mm

Lower door slot size：H3=8~10mm

SCOPE OF APPLICATION:

① Suitable for residential buildings, hotels, stores, office,etc.
② Suitable for single or multiple wooden sliding doors.

FUNCTIONAL CHARACTERISTICS:

① The upper load-bearing design avoids drilling and slotting on the ground
② High load-bearing, quiet and wear-resistant roller material
③ U-shaped train wheels with high-precision bearings for sliding doors
④ The insert tube is stretched and formed by high-quality steel, which is not easy to deform due to large bearing capacity
⑤ High-precision CNC machining ensures the parallelism and coaxiality of the four wheels of the hanging body, and the force is more uniform

PARAMETER:

Load-bearing range:   ≤ 60kg
Applicable door thickness:≥ 40mm
Applicable Applicable door width:≥ 400mm
Height adjustment:0-10mm
Service life:100000 times

MAIN MATERIALS:

Main material of hanging wheel:zinc alloy
Wheel material:New synthetic resin materials
Rack:High quality Steel
Hanging rail:Aluminium alloy

CALCULATION:

Door leaf height：L=H-H1-H2-H3
Effective opening width of door ：X=W-C
Door leaf overlap width：C=20~100mm

Hanger height: H1=36mm

Upper door slot size：H2=15~25mm

Lower door slot size：H3=5~8mm
