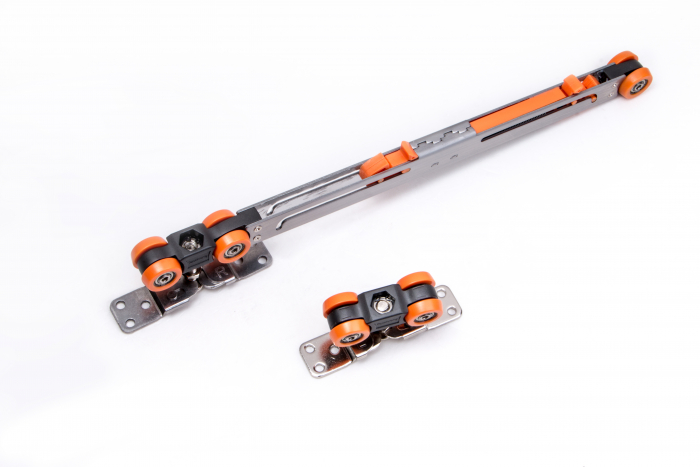

Description
SCOPE OF APPLICATION:
① Suitable for residential buildings, hotels, stores, office,etc.
② Suitable for single or multiple wooden sliding doors.
FUNCTIONAL CHARACTERISTICS:
① The upper load-bearing design avoids drilling and slotting on the ground
② High load-bearing, quiet and wear-resistant synthetic resin roller materia
③ Bevel round shaped wheels with high-precision bearings for sliding doors
④ Long buffer distance, mute, safe, and to prevent the pinch
⑤ Single oil cylinder bilateral buffer, wide range of installation door
PARAMETER:
Load-bearing range: ≤ 80kg
Applicable door thickness:≥40mm
Applicable Applicable door width: ≥550mm
Height adjustment: 0-10mm
Service life: 100000 times
MAIN MATERIALS:
Main material of hanging wheel:zinc alloy
Wheel material:New synthetic resin materials
Rack:high quality Steel
Hanging rail:Aluminium alloy
CALCULATION:
Door opening height H
Hanger rail height H1
Door leaf height L
Door leaf Width W
Door leaf overlap width C
Upper door slot size H2
Lower door slot size H3
Door leaf height：L=H-H1-H2-H3
Effective opening width of door：X=W-C
Door leaf overlap width：C=20~100mm
Hanger rail height：H1=38.5mm
Upper door slot size：H2=15~25mm
Lower door slot size：H3=5~8mm
